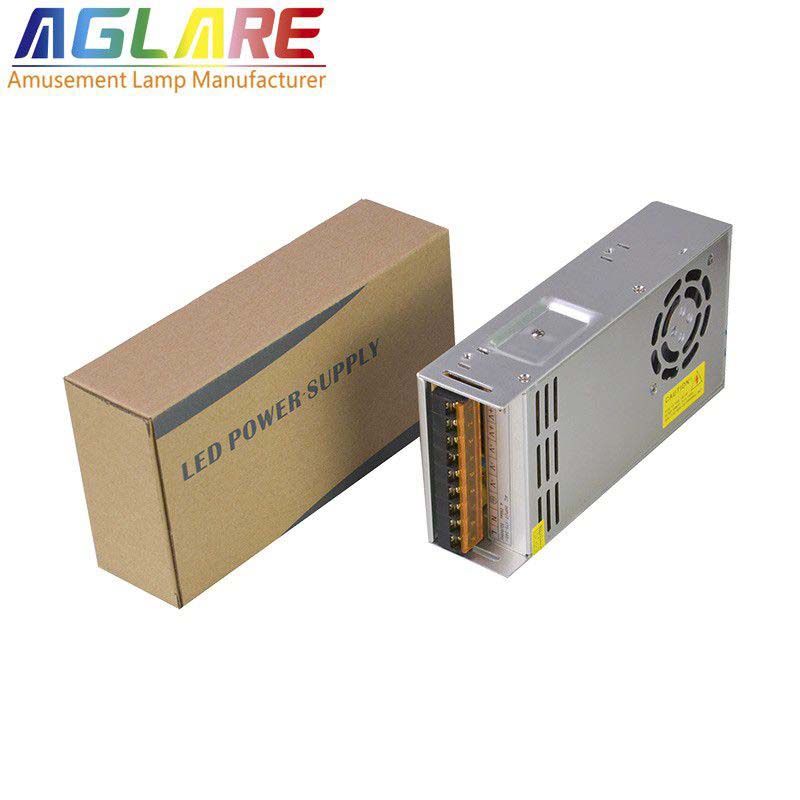

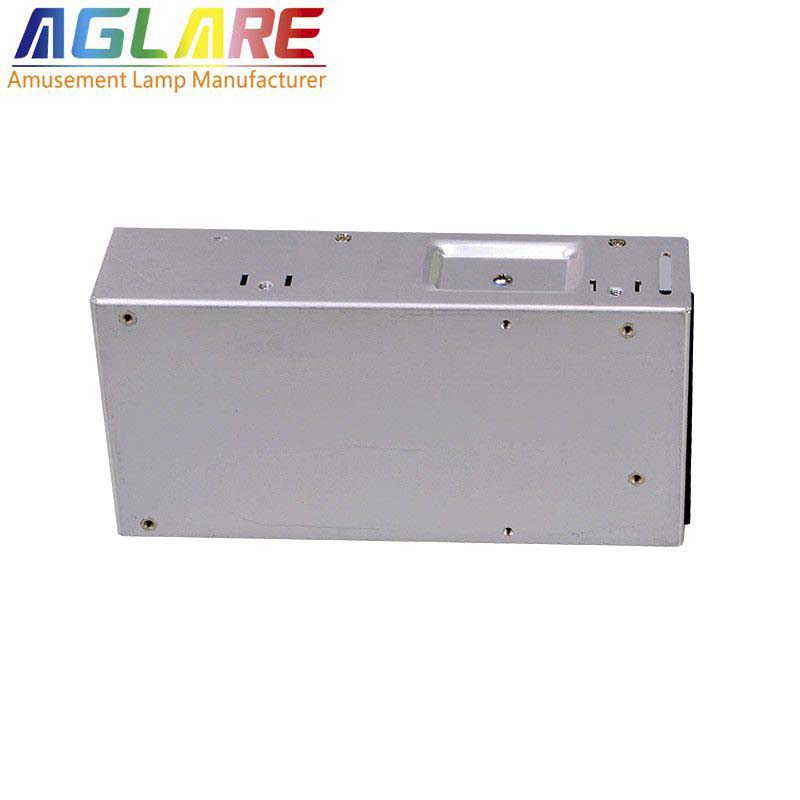

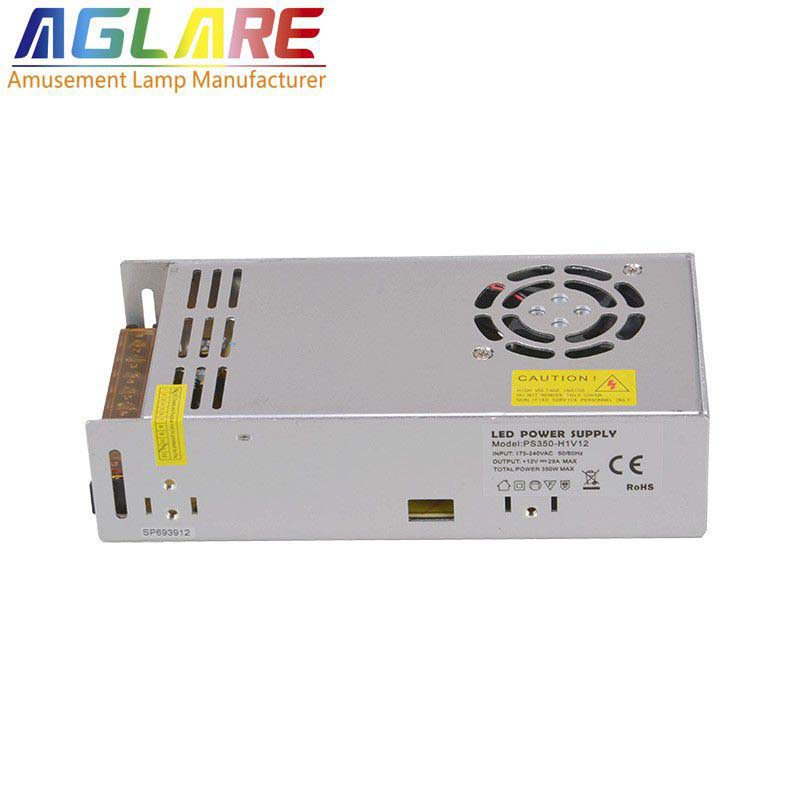

350W DC 12/24V 29.17A led switching power supply
| Product Parameters | ||
| Model No：：： | YJ350-H1V12 |
| Power：：： | 350W | |
| Size：：： | 199*98.5*50mm | |
| IP Degree：：： | IP22 | |
| Input voltage：：： | AC 175-240V | |
| Output voltage：：： | DC 12/24V | |
| Output current：：： | 29.17/14.58A | |
1. AC input range selectable by switch.
2. Protections: Short circuit / Overload / Over voltage / Over temperature.
3. Forced air cooling by built-in DC fan.
4. Withstand 300vac surge input for 5 second.
5. Built-in cooling Fan ON-OFF control.
6. Built-in constant current limiting circuit.
7. LED indicator for power on.
8. Fixed switching frequency at 90KHz.
9. Low cost, high reliability.
10. 2 years warranty.
